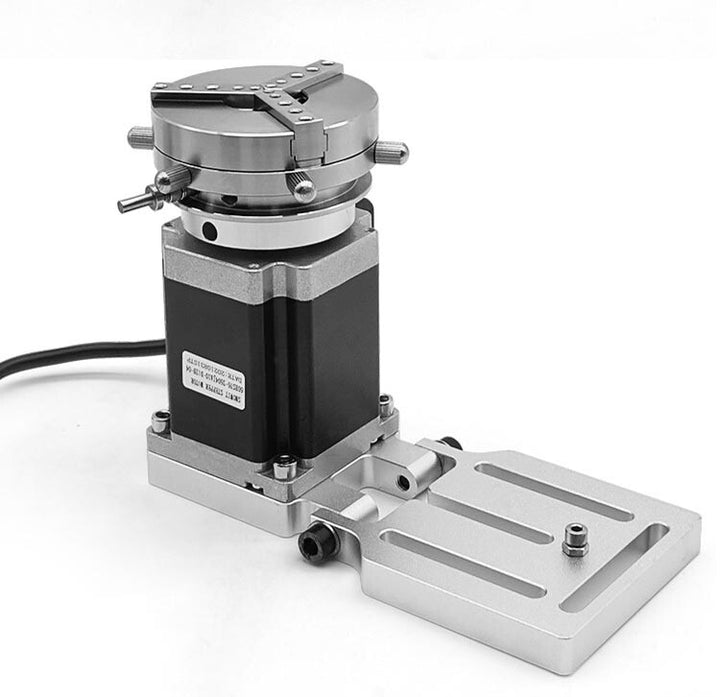

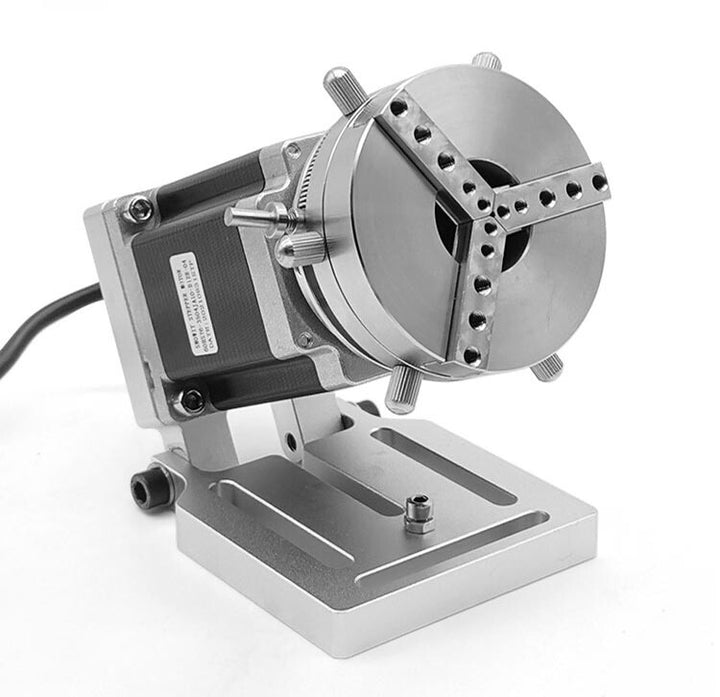

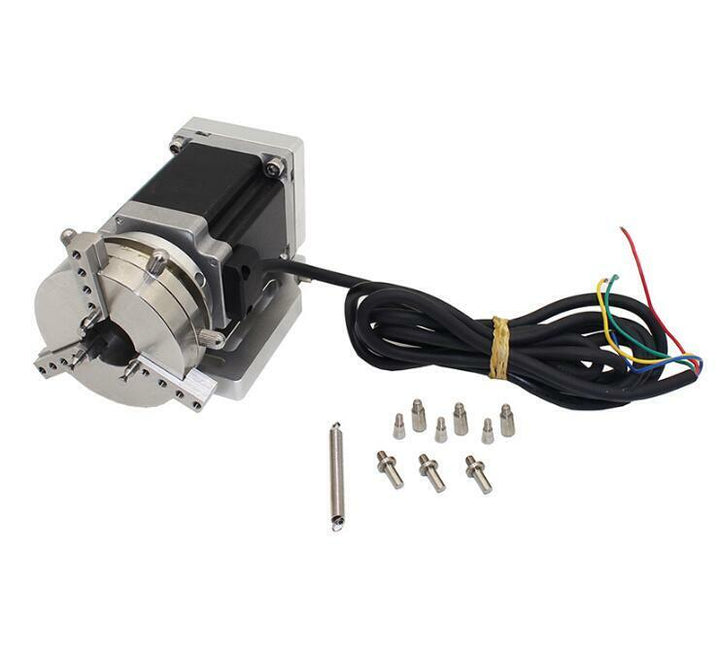

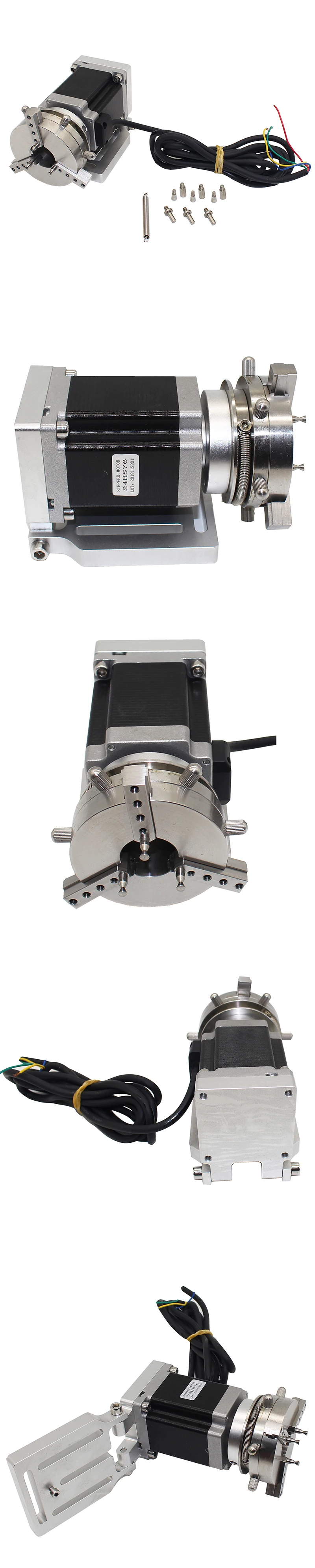

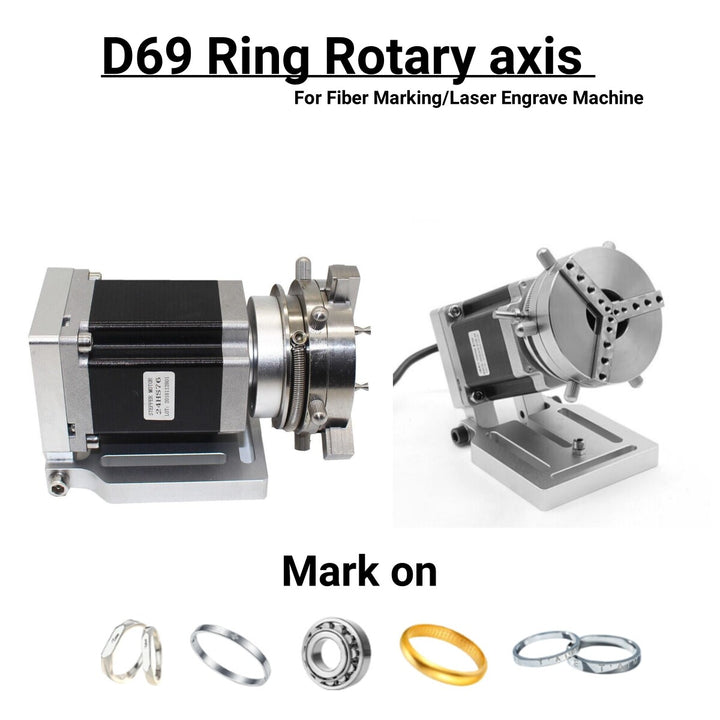

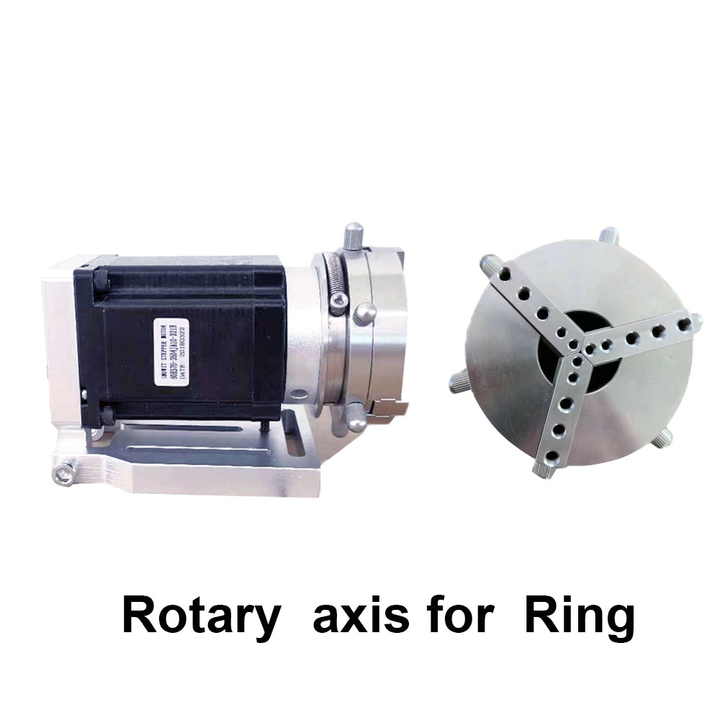

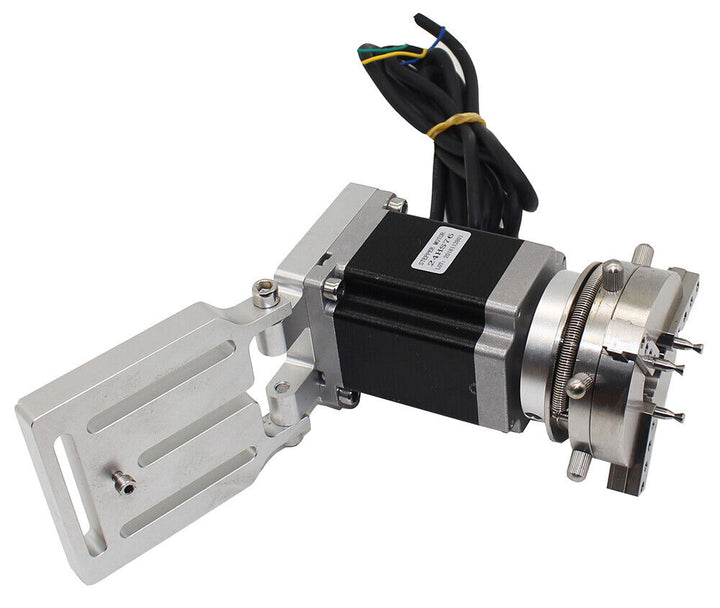

Ring Rotary Axis For Laser Marking Engraver Machine Rotation Fixture For Ring

Specification:

Driver: MD542A

Axial height: 50MM (90 degrees elevation)

Chuck: D69. inner clamp application (outer diameter 2 to 83mm), external support application (product inner diameter 11 to 91mm).

Application card pin: with four card pins (three each)

Transmission mode: direct connection

Dimensions: 130*90*90MM (length, width and height)

Mounting hole size: 50*50MM (M5.M6 screw)

Chuck maintenance: regularly add lubricant to moving parts to increase service life

Weight: 3KG
