Raycus QB 30W 300*300mm Fiber Laser Marking Machine Ezcad2 BJJCZ Red Dot US Ship

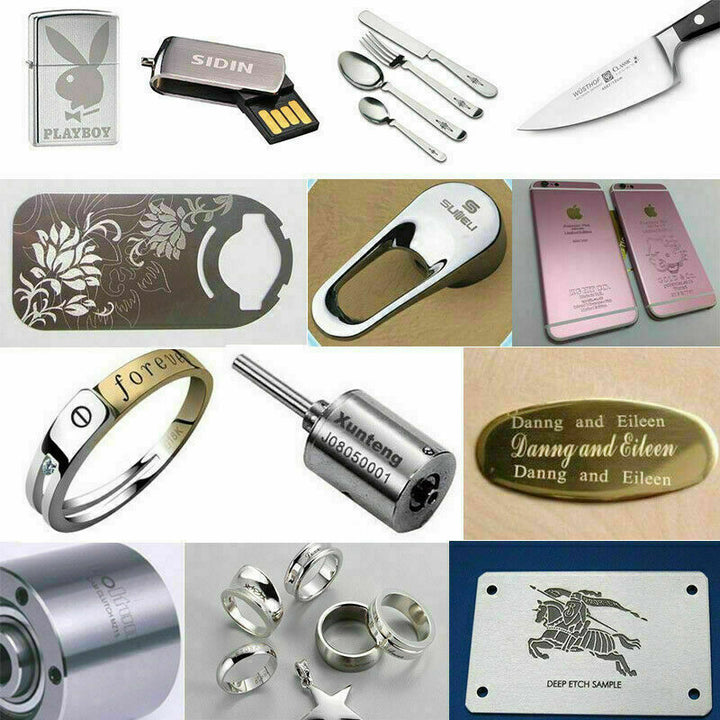

The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

Technical characteristics
  • Highly stable laser output
  • High single-pulse energy
  • High marking efficiency
  • Short pulse setup time
  • High reliability
  • Maintenance-free operation

Optical Properties
  • Average output power: (W): 30Central
  • wavelength: (nm): 1064
  • Repetition frequency: (kHz): 20-60
  • Output power instability: <3%

Output characteristics
  • Output Beam Diameter(mm): 6-8
  • M²:<1.5
  • Polarization state: randomPulse
  • Width Range(ns):90-110
  • Max.Single Pulse Energy(mJ):1
  • Delivery Cable length (m): 3(Customizable)

Electronic control characteristics

  • Input power (V DC ): 24
  • Power adjustment range (%): 10-100

Other characteristics
  • Dimensions (mm ): 286*215*95
  • Cooling method: Air-cooled
  • Working temperature ( ): 0-40

Technical Parameters
Item Value
Application Laser Marking
Laser Power 30W/50W
Brand Of Fiber Laser Module Maxphotonics(Chinese famous brand laser source)
Optional: IPG /JPT/Raycus laser source
Lift Span Of Fiber Laser Module 100,000 hours
Light Beam Quality M2<1.5
Marking Line Speed ≤8000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm/Depends on the material
Marking Depth ≤1.2mm/Adjustable depends on the materials
Repeating Precision ±0.003mm
Focus Spot Diameter <0.01mm
Output Power Of Laser 10%~100% continuously to be adjusted
Laser Wavelength 1064nm
Power Supply AC220V/50Hz
Temperature /Humidity 15~35/10%~95%
Power Consumption ≤400W
Operating System Win XP/Win7/Win8/Win10
Marking Format Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc.
Laser Type Fiber Laser
Condition New
Cooling System Inbuilt air cooling
Communication Standard USB2.0
Control Software Ezcad (Easy To Use)
Place of Origin China
Certification CE, ISO
Laser Source Brand Maxphotonics
Control System Brand BJJCZ (Original version)
Gross Weight (KG) 50KG
Net Weight (KG) 35KG
Package Wooden box
Key Selling Points Easy to operate
Rotary Axis Optional
After Warranty Service Video technical support, Online support, Spare parts
Marking Area 110mm*110mm / 300mm*300mm
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Warranty of core components 2 years
Core Components Motor, bearing, gear, pump, laser source, lens, galvanometer, control board
Optional (Not For Free) Rotary device,moving table,other customized automation
This above parameters are laboratory test results,subject to actual operating conditions.

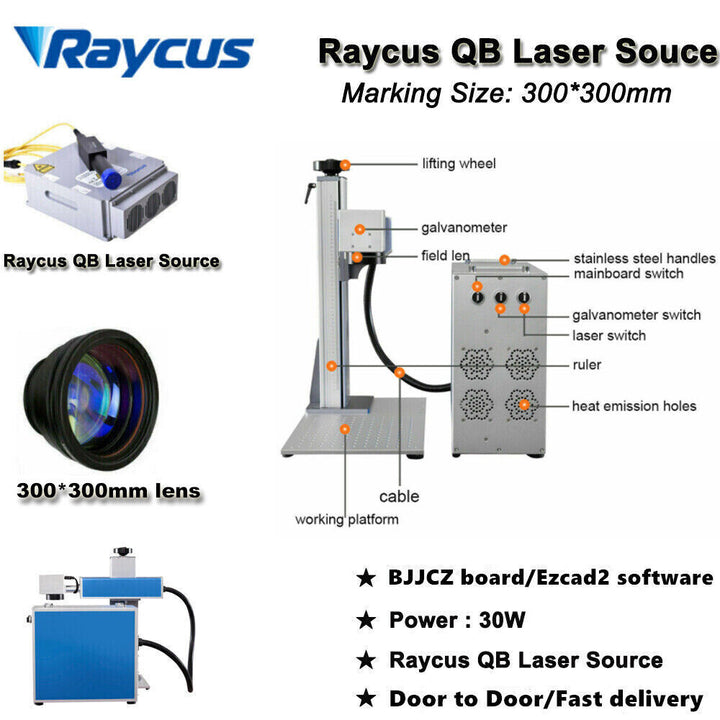

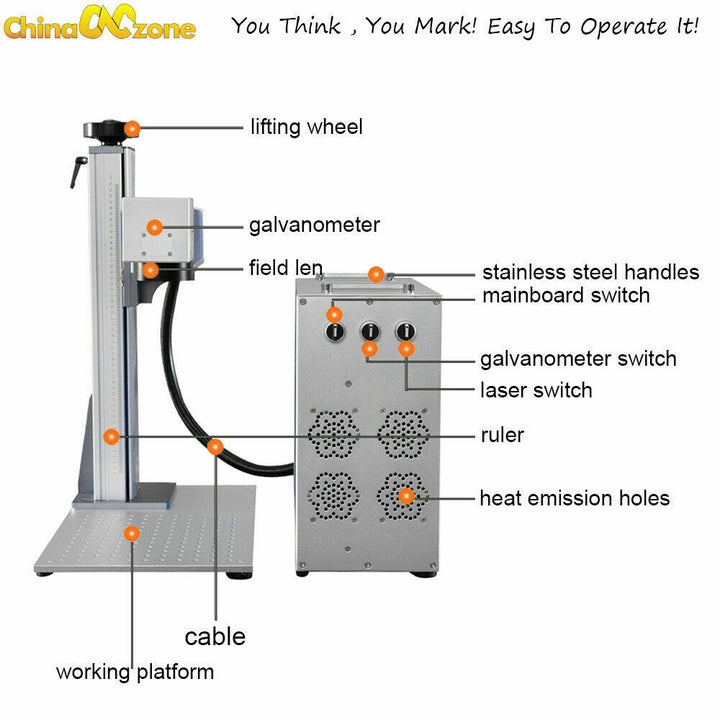

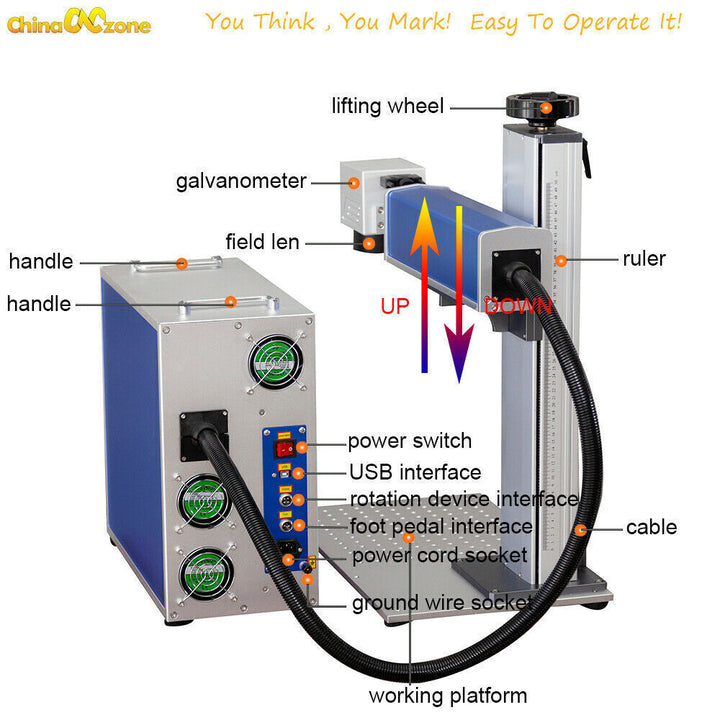

Fiber laser marking machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.
