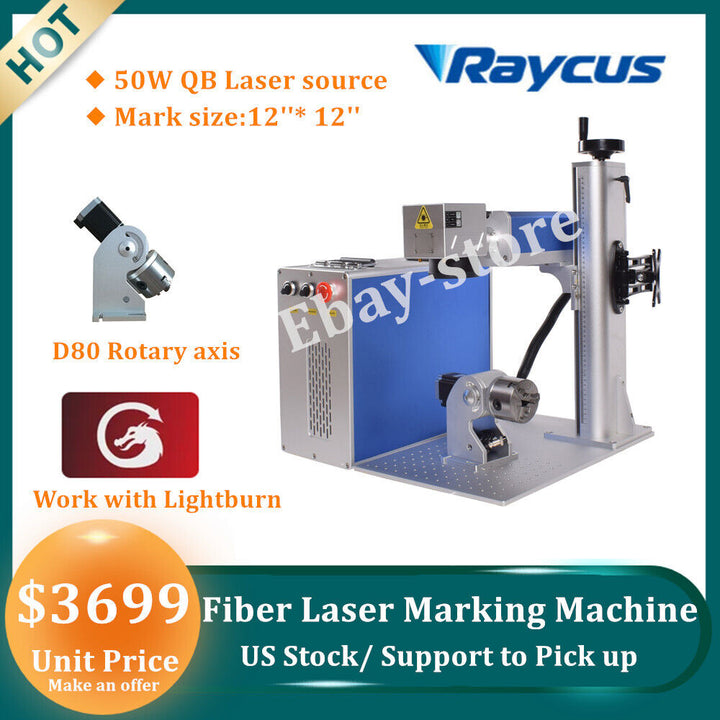

Raycus 50W Fiber Laser Marking 12X12" D80Rotary EZCAD LightBurn Compatible Laser

$3,299.00
Add to Wishlist

maestromasterpaypalshopify payvisa
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Fiber Laser Marking Machine
Description

Product Feature:

【Professional metal marking machince】① Raycus QB/JPT LP/MAX(Optional) Laser Source,built-in red light, more stability than Raycus Q or QS.  ② Support to customize the marking machine     according to your needs.

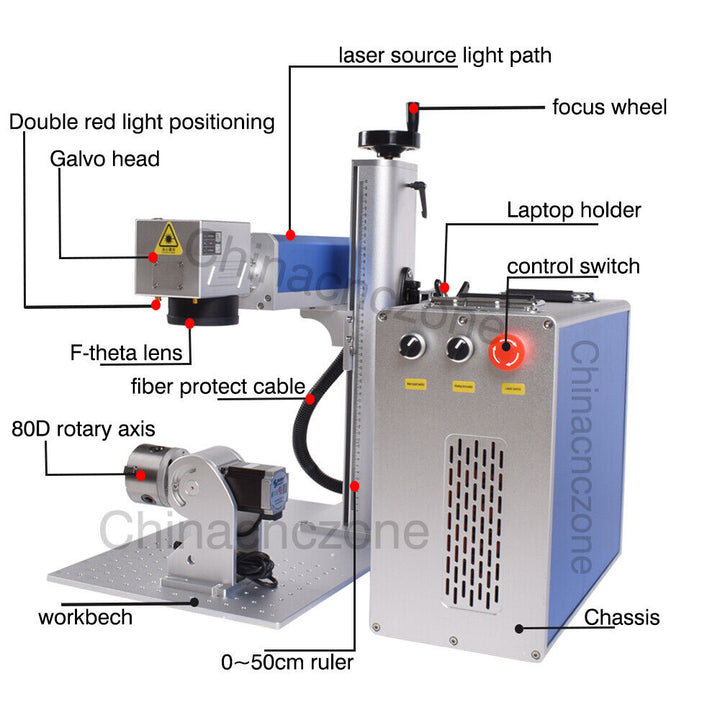

【Galvanometer】 ①SINO-Galvo SG7110 model scan head;  ② Lens: 1064nm F-theta lens;  ③  JCZ EZCAD Control Board & EZCAD2.0 LITE Software: Supports Win7/8/10/11 and  PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats.Work with Lightburn software; ④ High-Rate of Electrical-  Optical  Conversion: up to 70%; ⑤ Cooling Method:Air cooled.

【Laser Power】 ① JPT LP(Raycus QB/ MAX) 50W/30W+1064nm F-Theta Lens(Marking Area): 200*200mm(Optional)+ 80mm Rotary Axis.② Applicable Materials: Platinum, Tungsten, Titanium,Carbide Nickel, Carbon Steel, Aluminum, Stainless Steel, Brass, Copper, Gold, Silver, metals,etc. Also    some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

【Ultra-wide column, more stable marking】Adopt 130mm thickening ,widening, strengthen the lifting column, sturdy and durable

【3 Years warranty】3Years warranty of th machine, helpful customer service and tech support; Shipping by DHL/UPS/FEDEX around 2-7 days.

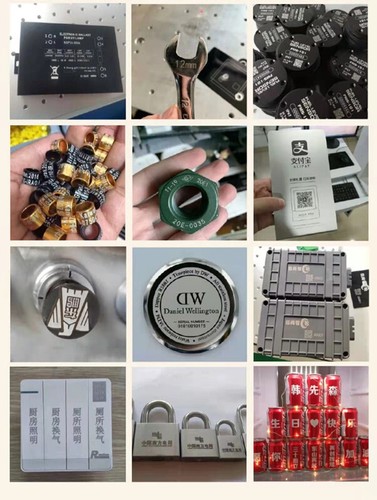

【Widely used】The fiber laser is widely used in many industries: Jewelry, computer and cell phone keyboards, auto parts, electronic components, buckles, integrated circuits, and so on.


Package include:
1 x Fiber Laser Machine
1 x Power Cable
1 x Foot Switch
1 x USB Cable
1 x Ground Wire
1 x Software CD
1 x300*300 lens

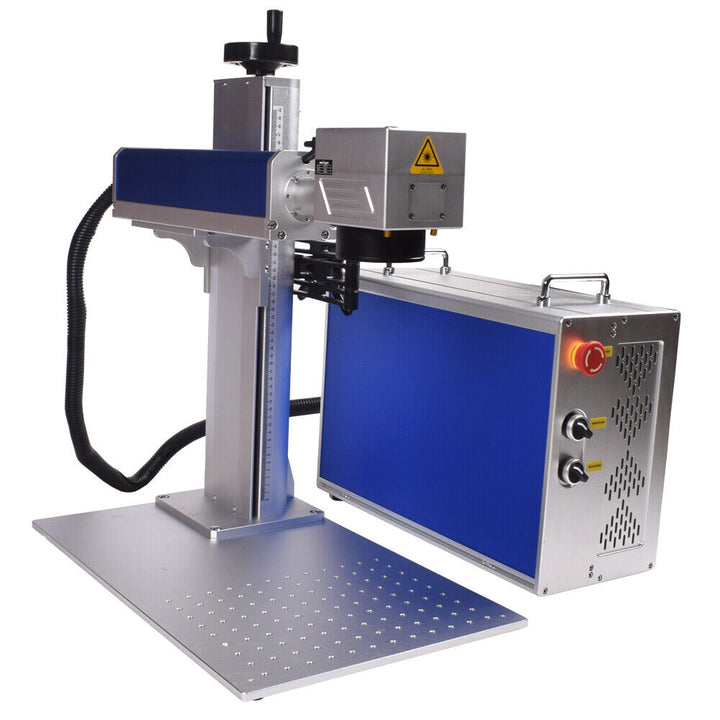

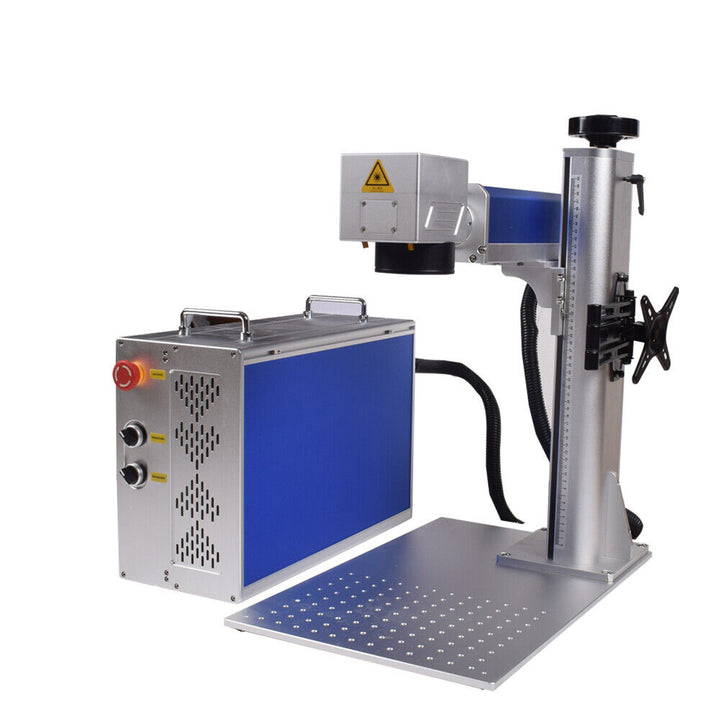

50W Portable Fiber Laser Marking Machine
The 50W portable fiber laser machine can mark on both metal and non-metal, which has the characteristics of sturdy, high efficiency, durable, and reliable. It is widely used for marking jewelry, keyboards of cell phones, auto parts, electronic components, electronic appliances, communication apparatus, sa nitary wares, buckles, kitchenware, sterile equipment, hardware tools, knife, glasses, clock, cooker, stainless steel products, etc.
