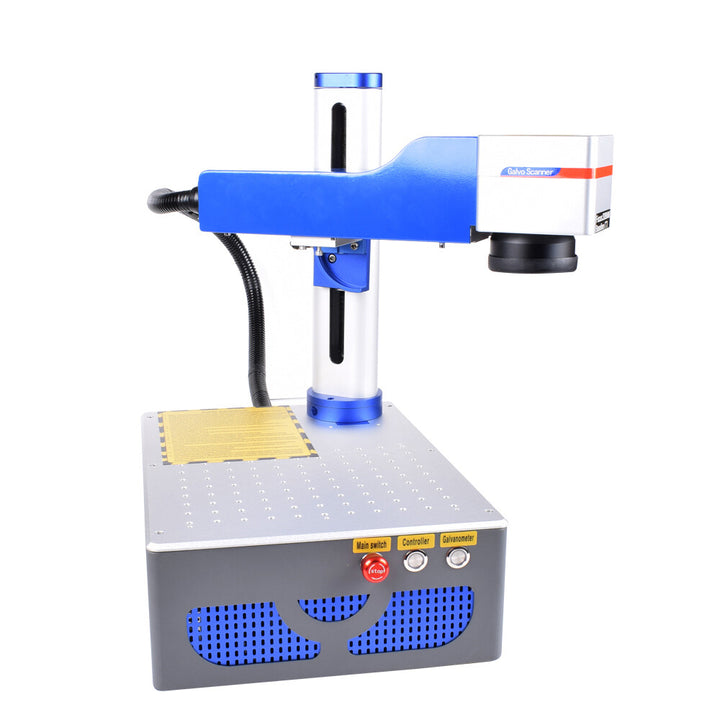

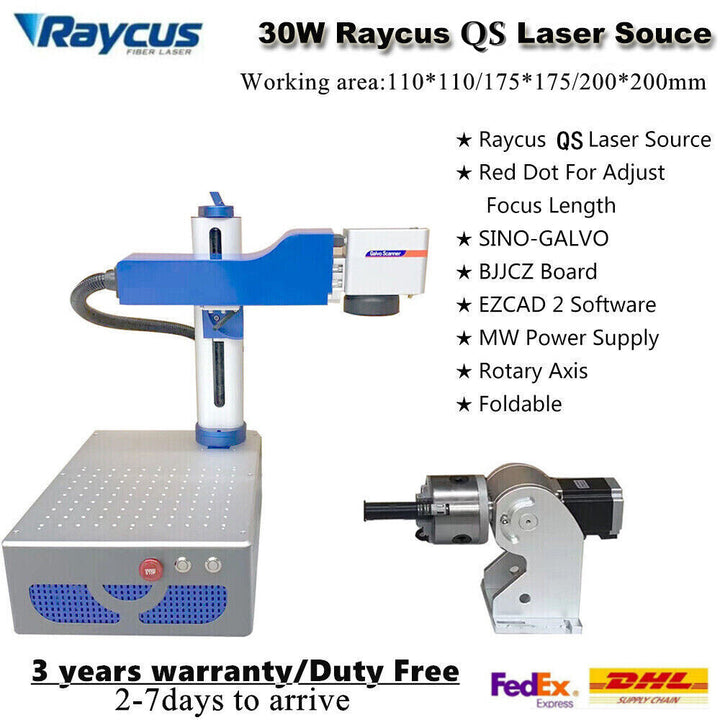

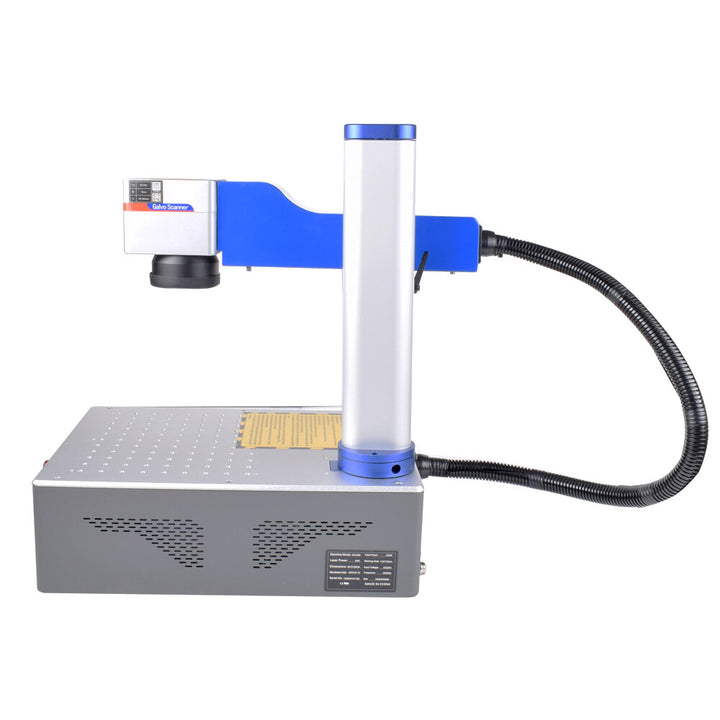

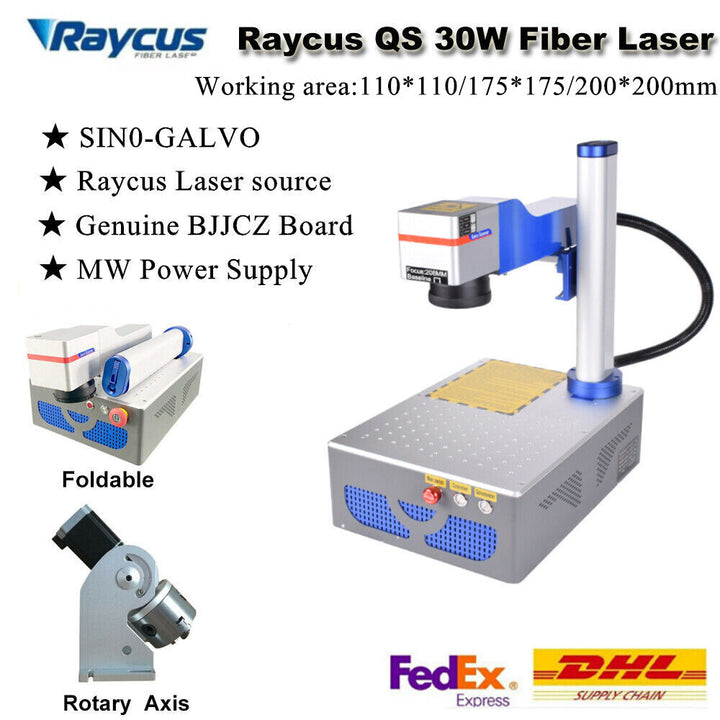

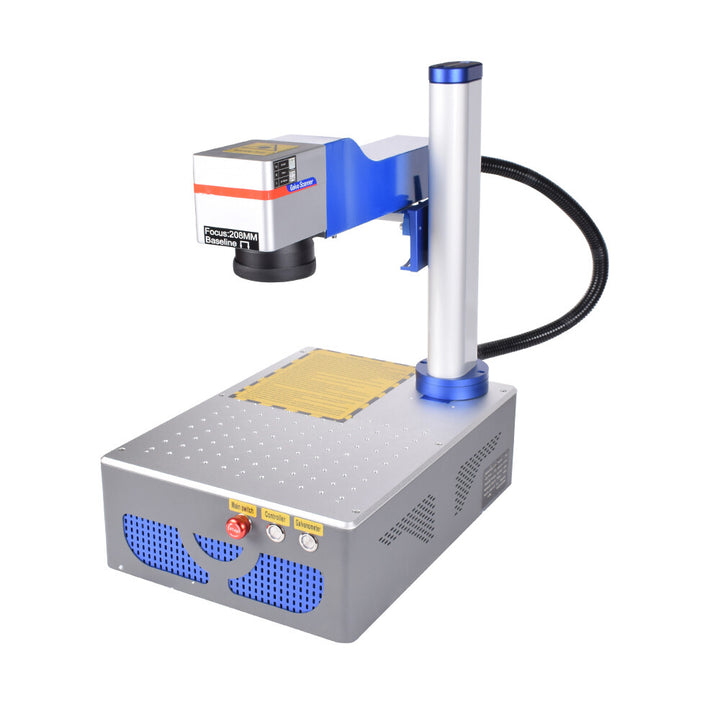

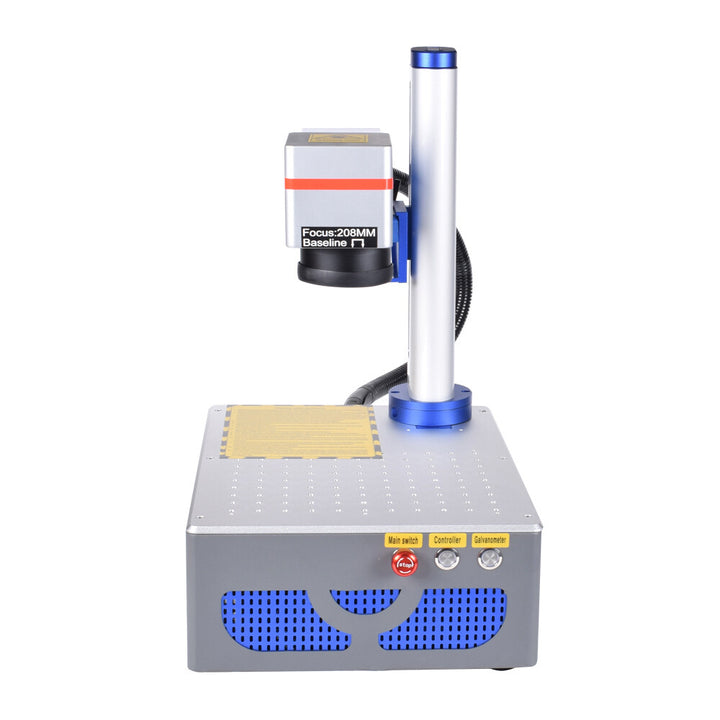

Raycus 30W QS Fiber Laser Marking Machine Rotary Axis Metal Marking Ezcad2 BJJCZ
Description
Feature:
]

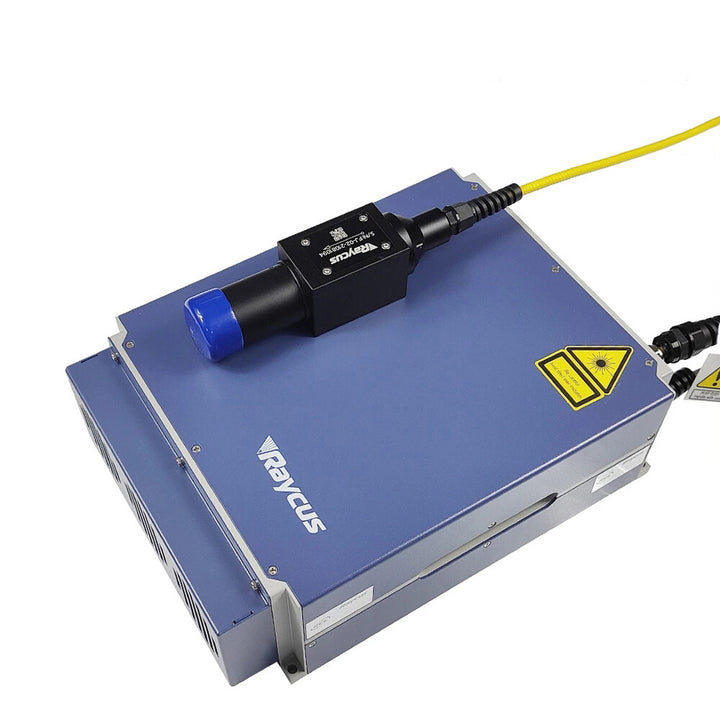

The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.
Application Of 30W Q-Switched Pulse Fiber Laser RFL-P30QS
Rust Removal
Oil Cleaning
Mold Surface Treatment
Paint Stripping
Welding Surface Pre-treatment
Portrait Stone Surface Treatment
Oil Cleaning
Mold Surface Treatment
Paint Stripping
Welding Surface Pre-treatment
Portrait Stone Surface Treatment
Package include:
1 x Fiber Laser Machine
1 x Power Cable
1 x Foot Switch
1 x USB Cable
1 x Ground Wire
1 x Software CD
1 x110*110 /175*175/200*200 lens（Optional）
| Technical Parameters | |
| Item | Value |
| Application | Laser Marking |
| Laser Power | 30W |
| Brand Of Fiber Laser Module |
Maxphotonics(Chinese famous brand laser source) Optional: IPG /JPT/Raycus laser source |
| Lift Span Of Fiber Laser Module | 100,000 hours |
| Light Beam Quality | M2<1.5 |
| Marking Line Speed | ≤8000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm/Depends on the material |
| Marking Depth | ≤1.2mm/Adjustable depends on the materials |
| Repeating Precision | ±0.003mm |
| Focus Spot Diameter | <0.01mm |
| Output Power Of Laser | 10%~100% continuously to be adjusted |
| Laser Wavelength | 1064nm |
| Power Supply | AC220V/50Hz |
| Temperature /Humidity | 15℃~35℃/10%~95% |
| Power Consumption | ≤400W |
| Operating System | Win XP/Win7/Win8/Win10 |
| Marking Format | Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc. |
| Laser Type | Fiber Laser |
| Condition | New |
| Cooling System | Inbuilt air cooling |
| Communication | Standard USB2.0 |
| Control Software | Ezcad (Easy To Use) |
| Place of Origin | China |
| Certification | CE, ISO |
| Laser Source Brand | Maxphotonics |
| Control System Brand | BJJCZ (Original version) |
| Gross Weight (KG) | 60KG |
| Net Weight (KG) | 35KG |
| Package | Wooden box |
| Key Selling Points | Easy to operate |
| Rotary Axis | Optional |
| After Warranty Service | Video technical support, Online support, Spare parts |
| Marking Area | 110mm*110mm / 300mm*300mm |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty of core components |
3 years
|
| Core Components | Motor, bearing, gear, pump, laser source, lens, galvanometer, control board |
| Optional (Not For Free) | Rotary device,moving table,other customized automation |
| This above parameters are laboratory test results,subject to actual operating conditions. | |
]
Additional Information
| Working area |
110*110mm+Rotary axis, 175*175mm+Rotary axis, 200*200mm+Rotary axis |
|---|
Raycus 30W QS Fiber Laser Marking Machine Rotary Axis Metal Marking Ezcad2 BJJCZ
$1,599.00
