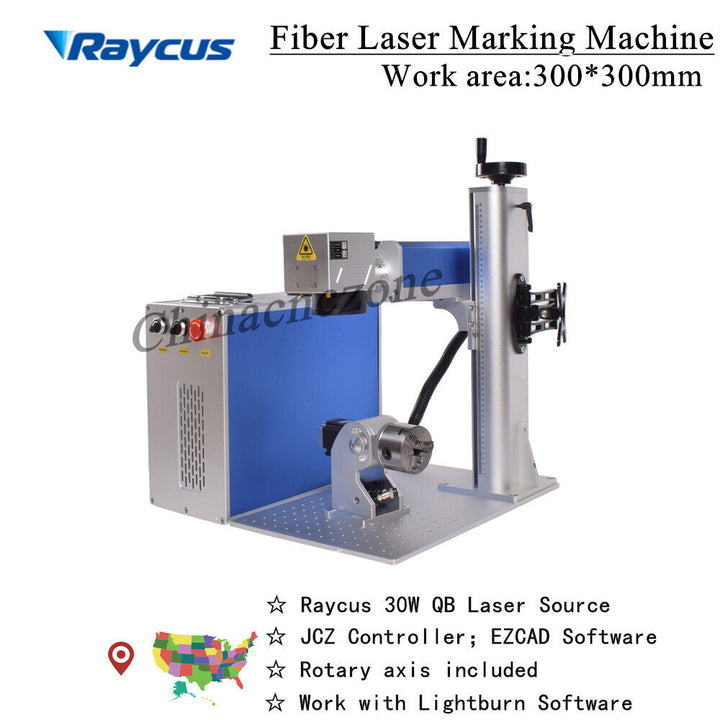

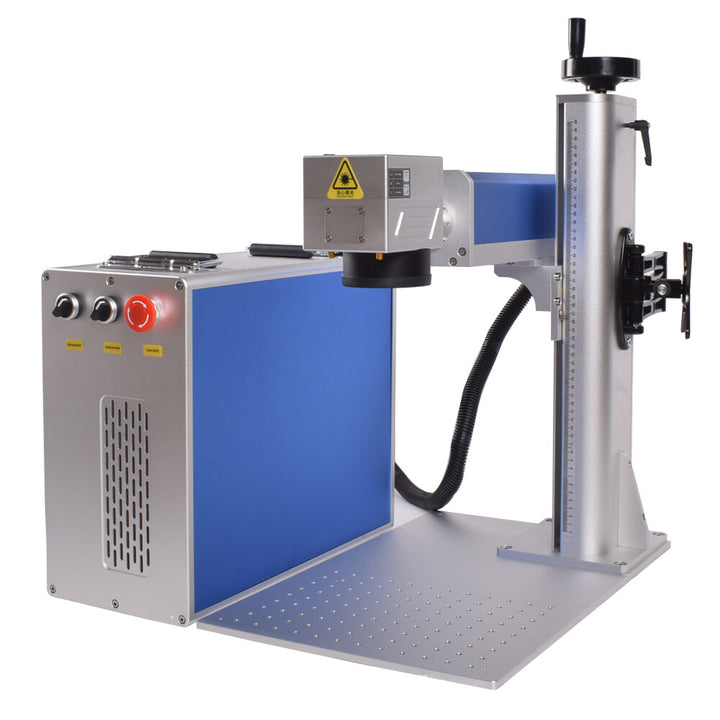

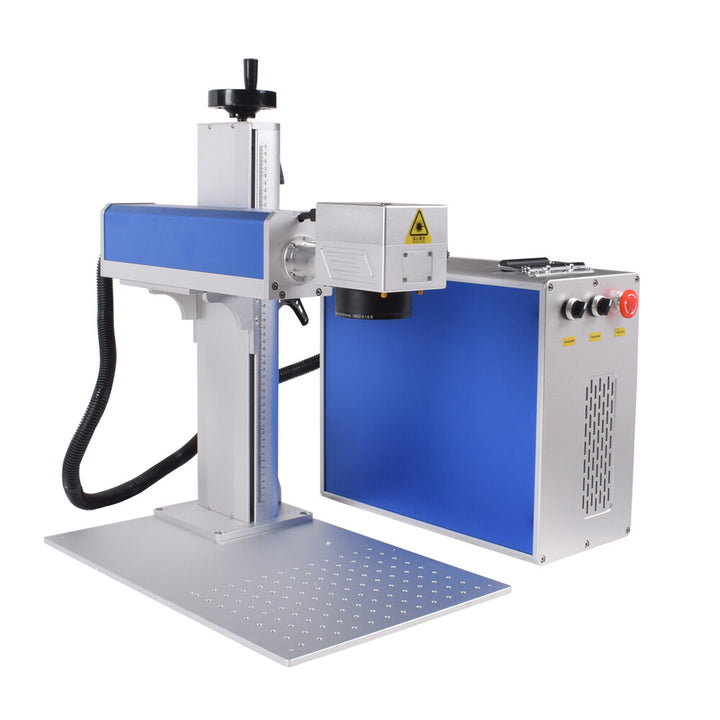

Raycus 30W QB Fiber Laser Marking Machine 300*300Laser Marker Rotary axis EZCAD

【Professional metal marking machince】① Raycus QB/JPT LP/MAX(Optional) Laser Source,built-in red light, more stability than Raycus Q or QS.  ② Support to customize the marking machine     according to your needs.

【Galvanometer】 ①SINO-Galvo SG7110 model scan head;  ② Lens: 1064nm F-theta lens;  ③  JCZ EZCAD Control Board & EZCAD2.0 LITE Software: Supports Win7/8/10/11 and  PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats.Work with Lightburn software; ④ High-Rate of Electrical-  Optical  Conversion: up to 70%; ⑤ Cooling Method:Air cooled.

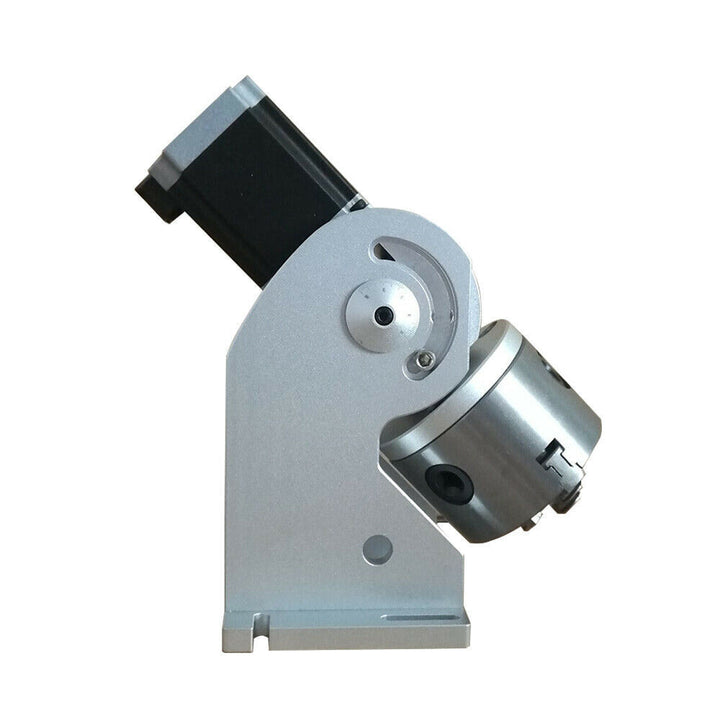

【Laser Power】 ① JPT LP(Raycus QB/ MAX) 50W/30W+1064nm F-Theta Lens(Marking Area): 200*200mm(Optional)+ 80mm Rotary Axis.② Applicable Materials: Platinum, Tungsten, Titanium,Carbide Nickel, Carbon Steel, Aluminum, Stainless Steel, Brass, Copper, Gold, Silver, metals,etc. Also    some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

【Ultra-wide column, more stable marking】Adopt 130mm thickening ,widening, strengthen the lifting column, sturdy and durable

【3 Years warranty】3Years warranty of th machine, helpful customer service and tech support; Shipping by DHL/UPS/FEDEX around 2-7 days.

【Widely used】The fiber laser is widely used in many industries: Jewelry, computer and cell phone keyboards, auto parts, electronic components, buckles, integrated circuits, and so on.

Package include:

1 x Fiber Laser Machine

1 x Power Cable

1 x Foot Switch

1 x USB Cable

1 x Ground Wire

1 x Software CD

1 x110*110 lens

1 x300*300 lens
