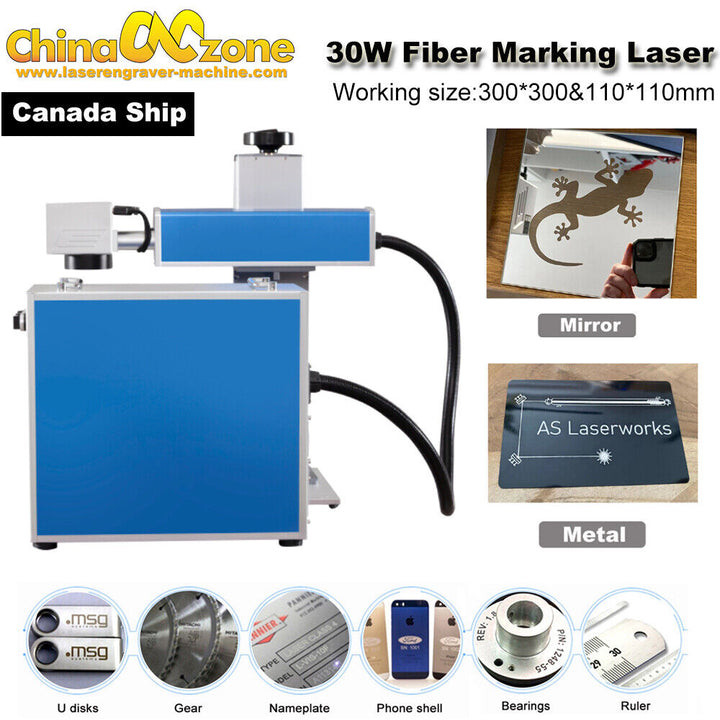

Portable 30W 300*300 Fiber Laser Marking Machine Ezcad 2 BJJCZ Board Foot Switch

$2,555.54
Add to Wishlist

maestromasterpaypalshopify payvisa
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Fiber Laser Marking Machine
Description
Portable 30W 300*300 Fiber Laser Marking Machine Ezcad 2 BJJCZ Board Foot Switch

Technical Parameters
Item Value
Application Laser Marking
Laser Power 30W
Brand Of Fiber Laser Module Maxphotonics(Chinese famous brand laser source)
Lift Span Of Fiber Laser Module 100,000 hours
Light Beam Quality M2<1.5
Marking Line Speed ≤8000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm/Depends on the material
Marking Depth ≤1.2mm/Adjustable depends on the materials
Repeating Precision ±0.003mm
Focus Spot Diameter <0.01mm
Output Power Of Laser 10%~100% continuously to be adjusted
Laser Wavelength 1064nm
Power Supply AC110V/60Hz
Temperature /Humidity 15℃~35℃/10%~95%
Power Consumption ≤400W
Operating System Win XP/Win7/Win8/Win10
Marking Format Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc.
Laser Type Fiber Laser
Condition New
Cooling System Inbuilt air cooling
Communication Standard USB2.0
Control Software Ezcad (Easy To Use)
Place of Origin China
Certification CE, ISO
Laser Source Brand Maxphotonics
Control System Brand BJJCZ (Original version)
Gross Weight (KG) 60KG
Net Weight (KG) 35KG
Package Wooden box
Key Selling Points Easy to operate
Rotary Axis Optional
After Warranty Service Video technical support, Online support, Spare parts
Marking Area 110mm*110mm / 300mm*300mm
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Warranty of core components 2 years
Core Components Motor, bearing, gear, pump, laser source, lens, galvanometer, control board
Optional (Not For Free) Rotary device,moving table,other customized automation
This above parameters are laboratory test results,subject to actual operating conditions.
