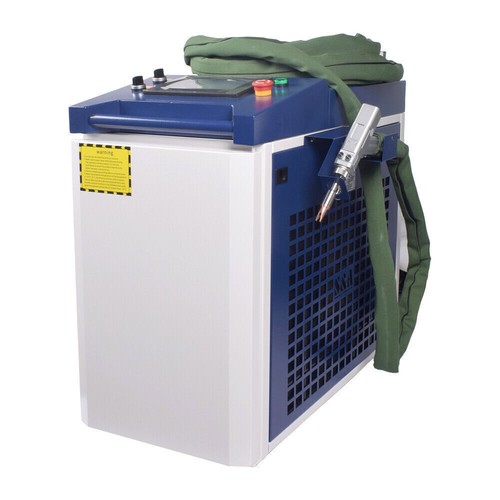

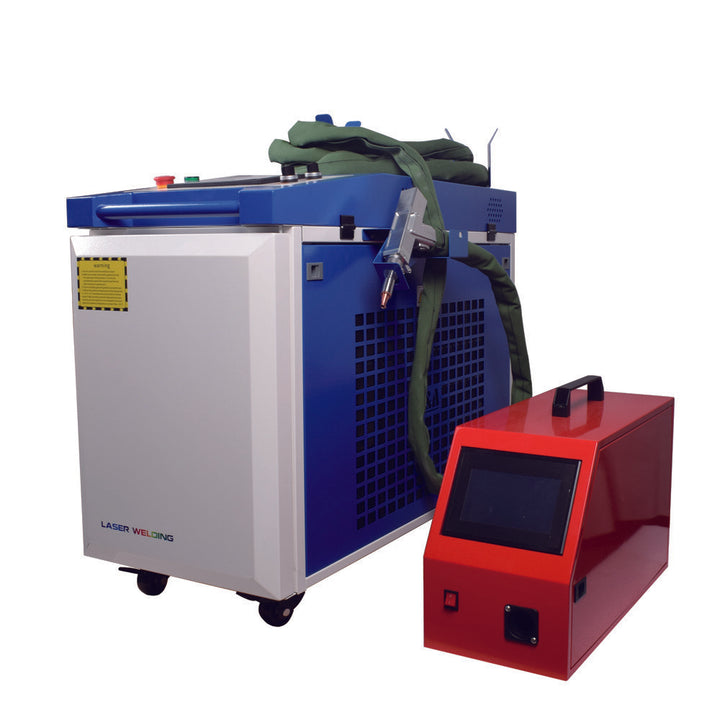

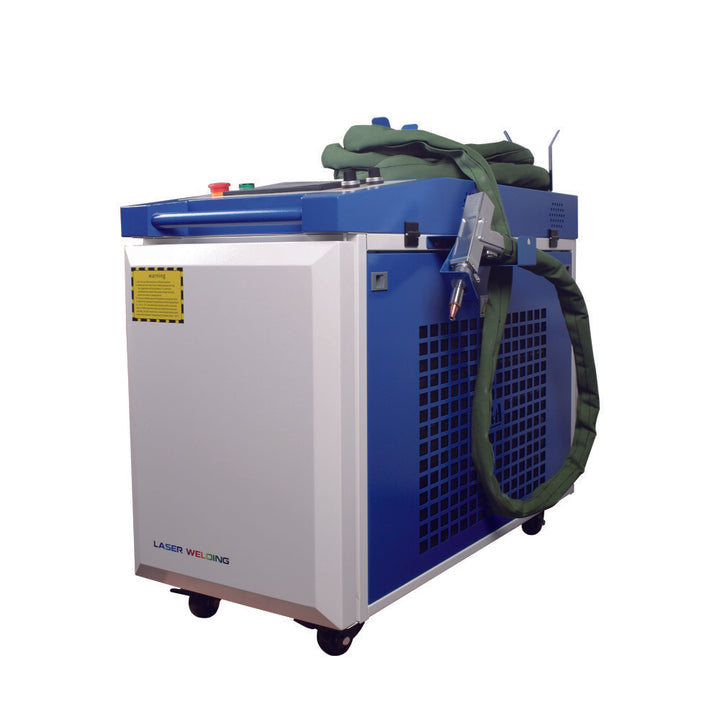

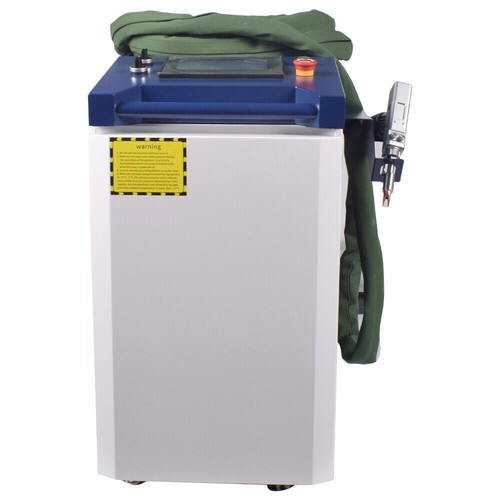

Laser Welding Machine Cleaning Cutting Rust Paint Removing 1500W/2000W/3000W US

Model
Laser Power	1500W	1500W	1500W	1500W

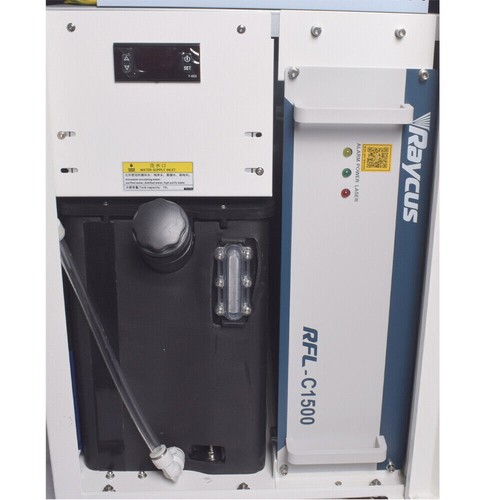

Laser Source brand	Raycus-1500W	Raycus-1500W	BFL-CW15	Rlaser-1500W
System Model	Single pendulum system	Double pendulum system	Single pendulum system	Single pendulum system

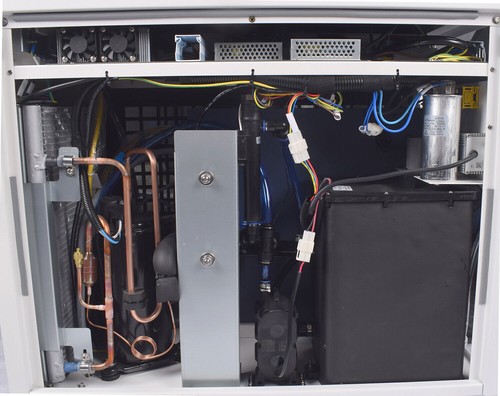

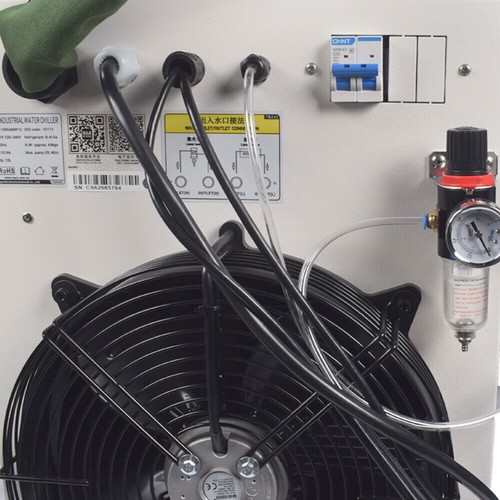

Water Chiller Model	S&A  CWFL-1500ANW12	S&A  CWFL-1500ANW12	S&A CWFL-1500ANW08	/

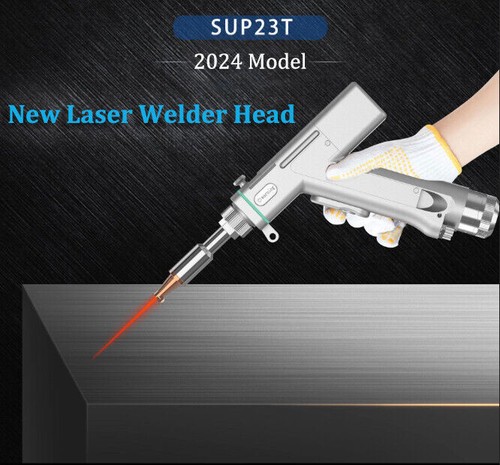

Laser Gun Mode	chaoqiang SUP23T	Relfar FWH30-D10C	chaoqiang SUP23T	chaoqiang SUP23T
Total power	5KW	5KW	4KW	3.6KW
Weld Speed	0-120mm/S
Rust removal width	1-150mm
Cooling	Water cooling	Water cooling	Water cooling	Air cooling
Welding thickness of carbon steel	0.35-4mm（Max 4.5mm）	0.35-4mm（Max 4.5mm）	0.35-4mm(Max 4.5mm)	0.35-5mm(Max 5.5mm）
Welding thickness of Aluminum	3mm（Max 3.5mm）	3mm（Max 3.5mm）	3mm(Max 3.5mm）	3mm(Max 3.5mm)
Cutting thickness of Aluminum	0-2mm(Max 2.5mm)	0-2mm(Max 2.5mm)	0-2mm(Max 2.5mm)	0-2.5mm(Max 2.8mm)
Cutting thickness of carbon steel	0-5mm（Max 8mm）	0-5mm（Max 8mm）	0-5mm (Max 8mm)	0-5.5mm(Max 9mm)
Optional laser power	1000W/1500W/2000W/3000W	1500W/2000W	1500W/2000W	700W/1200W/1500W
Sell Price	5999USD/PC	6299USD/PC	5499USD/PC	5699USD/PC





Laser welding

1) the weld is smooth and beautiful, the weld workpiece has no deformation, the weld is firm, and no

Subsequent grinding process is required, saving time and cost.

Fast welding speed, 2~10 times faster than traditional welding.

2) Easy operating do not require any training

Welding seam beautiful smooth and beautiful, don't need polish, save your time

No deformation or welding scar, welding the workpiece firmly.

3) easy maintenance

Laser welding has less consumption and long service life. Safer, more environmentally friendly.

4) Wildly used in kitchen and bathroom cabinet, stair lift, shelf, oven, stainless steel door and window

Guardrail, distribution box, stainless steel home.



Laser cleaning

1) Laser Rust Removal: Laser light can easily remove rust, after removal, the surface is restored to a bright metallic color or restore the original base color.

2) Laser Oil Removal: Metal surface oil cleaning (can remove oxide layer at the same time)

3) Laser Color Removal: removes various colors including Auto Duco on various surfaces and cars

4) stripping plating (galvanized layer, aluminized layer, protective plating, etc.)

5) Removal of aluminum alloy, titanium alloy, copper alloy oxide layer

6) Pre-Weld Pretreatments: After laser cleaning pretreats the aluminum alloy, the welding porosity defects are effectively suppressed

7) Post-weld cleaning: Non-Contact NDT removal of post-weld oxide layer and slag residue

8) Aluminum alloy pulsed laser remove dirt and oxide film before welding
