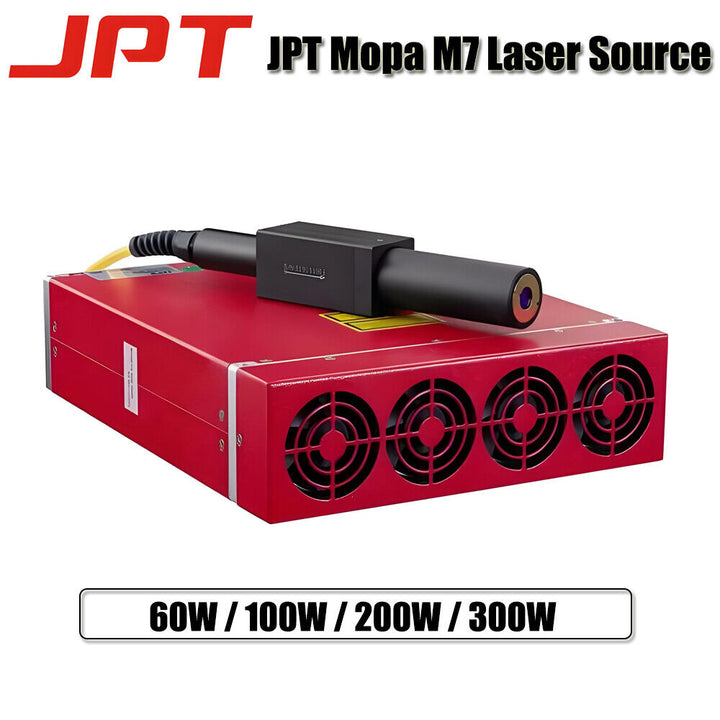

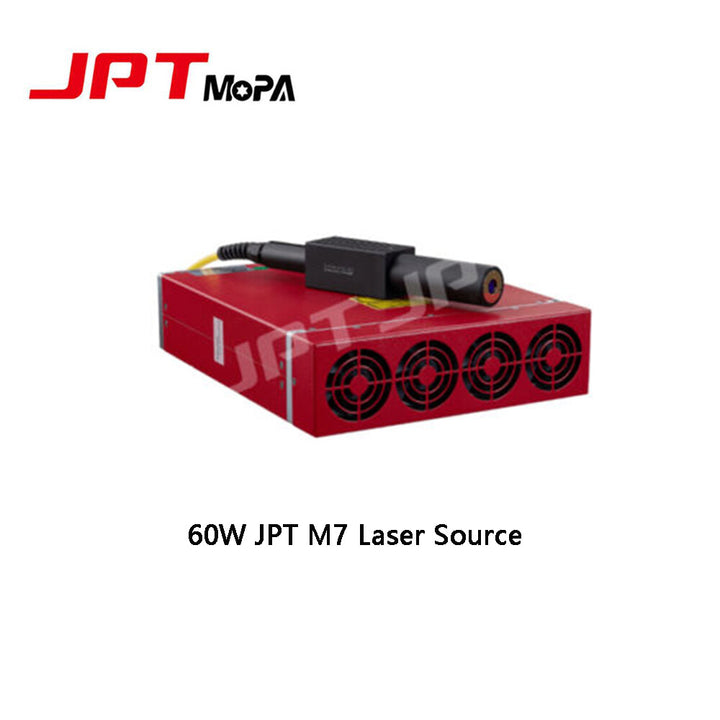

JPT M7 MOPA 60W100W 200W 300W Laser Source for Marking Drilling Cutting Machine

$2,199.00

Model: 60W

60W
100W
200W
300W
Add to Wishlist

maestromasterpaypalshopify payvisa
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Accessories&Others
Description
JPT M7 MOPA 60W100W 200W 300W Laser Source for Marking Drilling Cutting Machine
Application Advantages

Sheet metal cutting, Welding
Scribing, Drilling
Laser derusting
Surface treatment
Metal surface processing, Peeling coating
Marking on fly



Product Description

JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.



Technical Specifications


Unit Parameter
Product Model   YDFLP-E-60-M7-M-R YDFLP-E-30-M7-S-R YDFLP-E-60-M7-M-R YDFLP-100-M7-M-R
M2   <1.4 <1.5 <1.4
Delivery Cable Length m 2 3
Nominal Average Output Power W >20 >30 >60 >100
Maximum Pulse Energy mJ 0.8 1.5
Pulse Repetition Rate Range kHz 1 ~ 4000 1 ~ 4000
Pulse Duration ns 2 ~ 350 2~500
Output Power Stability % <5
Cooling Method   Air Cooled
Supply DC Voltage (VDC) V 24 48
Maximum Power Consumption W <110 <150 <300 <400
Environmental Supply Current A >5 >7 >13 >8
Central Emission Wavelength nm 1064
Emission Bandwidth@3dB nm <15
Polarization Orientation   Random
Anti-high Reflection   Yes
Output Beam Diameter mm 7±0.5
Output Power Tuning Range % 0 ~ 100
Operation Temperature ℃ 0 ~  40
Storage Temperature ℃ -10 ~ 60
N.W KG 3.75 4.25 8.2 13.2
Size(L×W×H) mm 245 × 200 × 65 325 × 260 × 75 338 × 280 × 112
