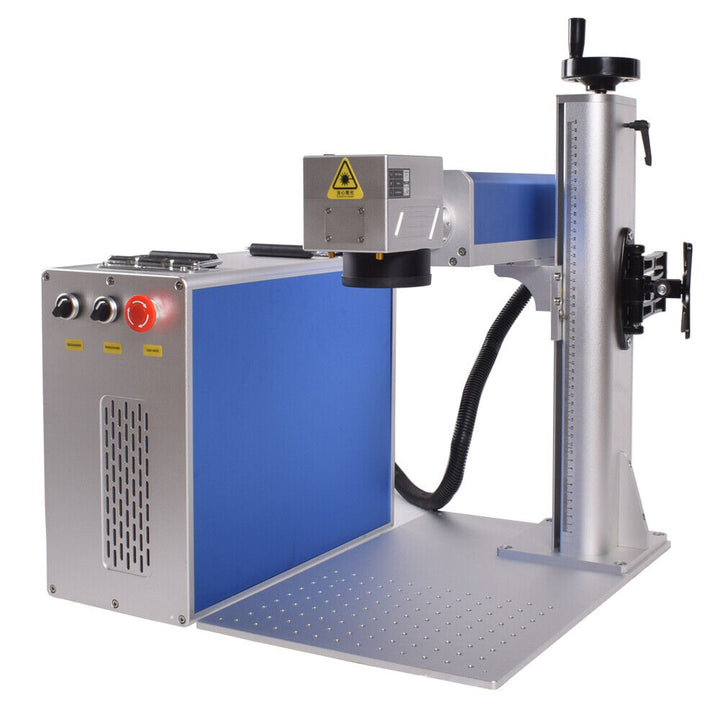

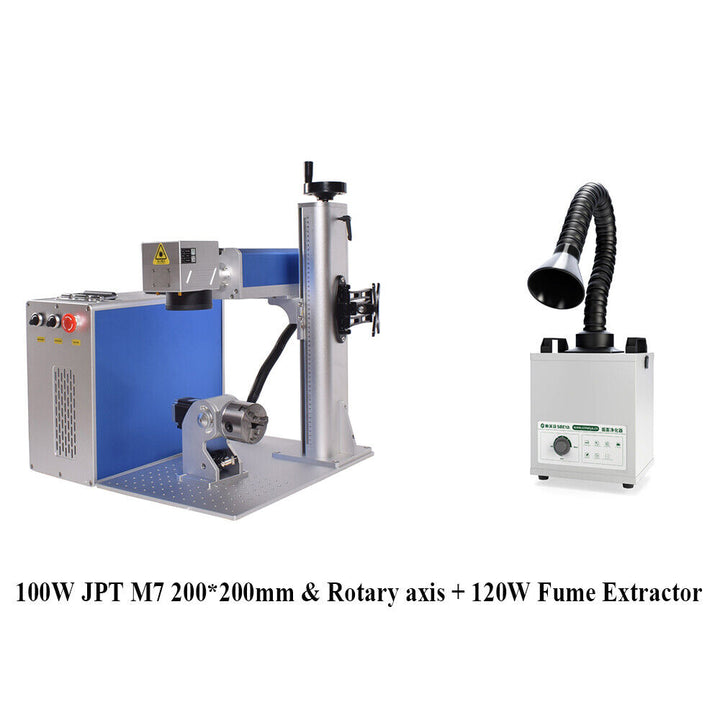

JPT 100W M7 200*200 Mopa Fiber Laser Marking Machine & Rotation & 120W Air Purer
Description
PS:Welcome contact us for more details of this fiber machine!
JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.
Application Advantages
Sheet metal cutting, Welding
Scribing, Drilling
Laser derusting
Surface treatment
Metal surface processing, Peeling coating
Marking on fly
| Technical Parameters | |
| Item | Value |
| Application | Laser Marking |
| Laser Power | YDFLP-E2-100-M7-M-R |
| Brand Of Fiber Laser Module | JPT M7 Laser Source Optional: IPG /Max/Raycus laser source |
| Lift Span Of Fiber Laser Module | 100,000 hours |
| Light Beam Quality | M2<1.6 |
| Marking Line Speed | ≤8000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm/Depends on the material |
| Marking Depth | ≤1.2mm/Adjustable depends on the materials |
| Repeating Precision | ±0.003mm |
| Focus Spot Diameter | <0.01mm |
| Output Power Of Laser | 10%~100% continuously to be adjusted |
| Laser Wavelength | Si 1064nm |
| Power Supply | AC220V/50Hz |
| Temperature /Humidity | 15℃~35℃/10%~95% |
| Power Consumption | ≤400W |
| Operating System | Win XP/Win7/Win8/Win10 |
| Marking Format | Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc. |
| Laser Type | Fiber Laser |
| Condition | New |
| Cooling System | Inbuilt air cooling |

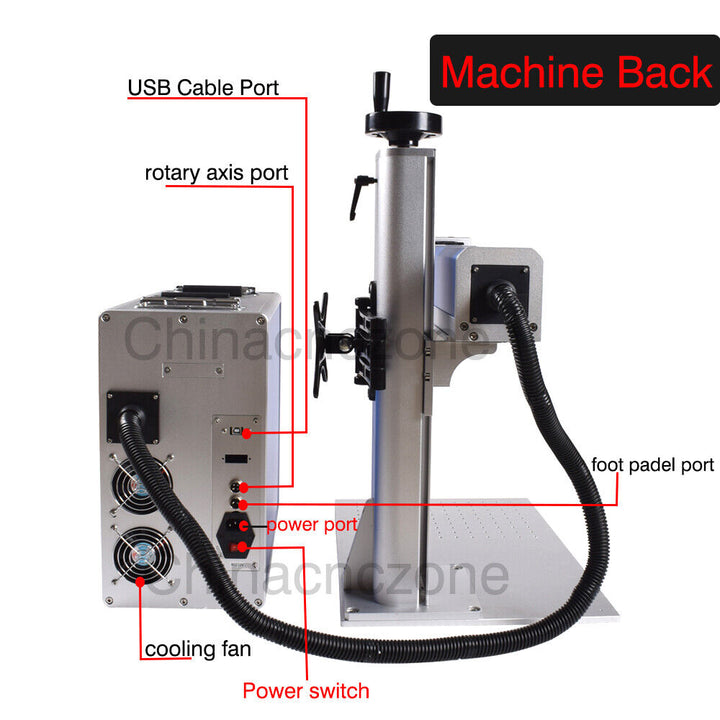

| Communication | Standard USB2.0 |
| Control Software | Ezcad (Easy To Use) |
| Place of Origin | China |
| Certification | CE, ISO |
| Laser Source Brand | JPT M7 Laser source |
| Control System Brand | BJJCZ (Original version) |
| Gross Weight (KG) | 55KG |
| Net Weight (KG) | 45KG |
| Package | Carton box |
| Key Selling Points | Easy to operate |

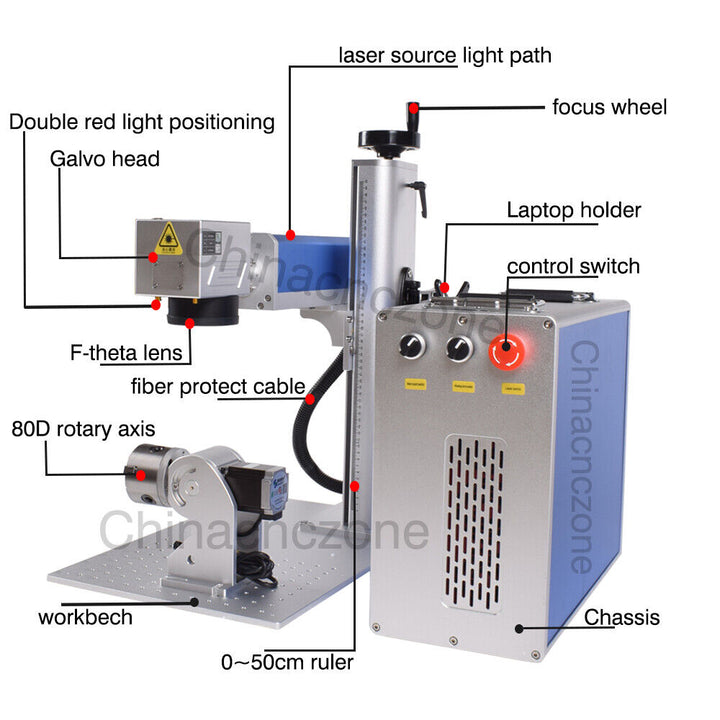

| Rotary Axis | Optional |
| After Warranty Service | Video technical support, Online support, Spare parts |
| Marking Area | 300mm*300mm |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty of core components | 2 years |
| Core Components | Motor, bearing, gear, pump, laser source, lens, galvanometer, control board |
| Optional (Not For Free) | Rotary device,moving table,other customized automation |
| This above parameters are laboratory test results,subject to actual operating conditions. | |
JPT 100W M7 200*200 Mopa Fiber Laser Marking Machine & Rotation & 120W Air Purer
$4,274.05
