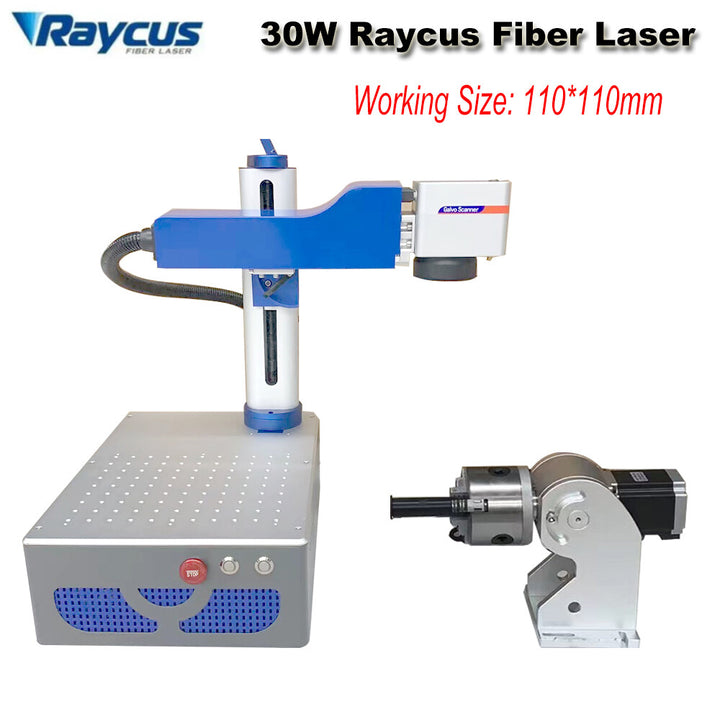

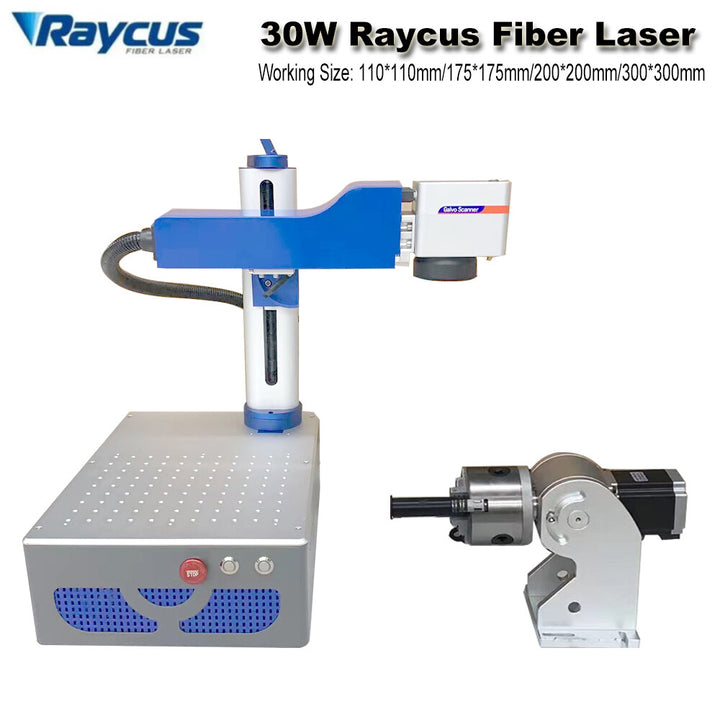

Foldable Raycus QS 30W Fiber Laser Marking Machine Ezcad 2 BJJCZ & Rotary Axis

$245.00

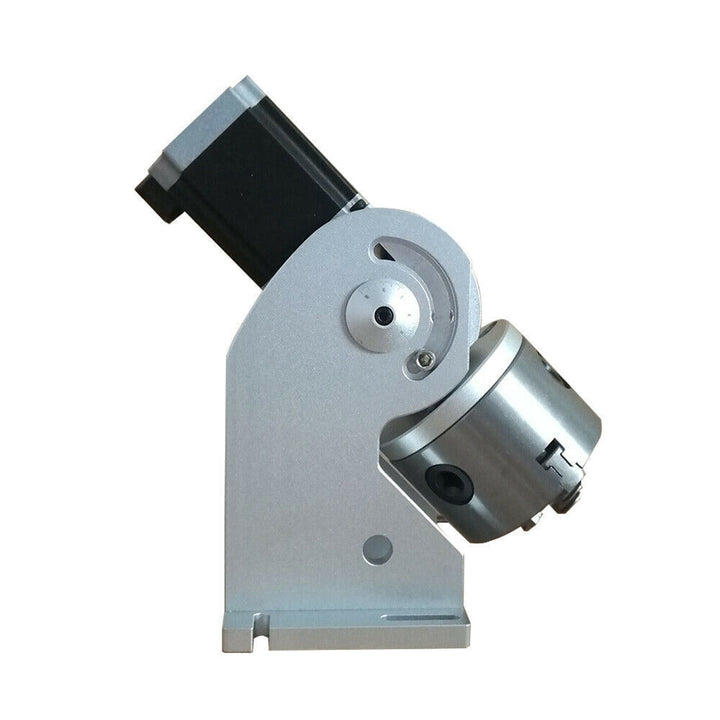

Item: Rotary Axis Only

Rotary Axis Only
30W 110*110mm Raycus Fiber laser& Rotary
30W 175*175mm Raycus Fiber laser& Rotary
30W 200*200mm Raycus Fiber laser& Rotary
30W 300*300mm Raycus Fiber laser& Rotary
Add to Wishlist

maestromasterpaypalshopify payvisa
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Fiber Laser Marking Machine
Description

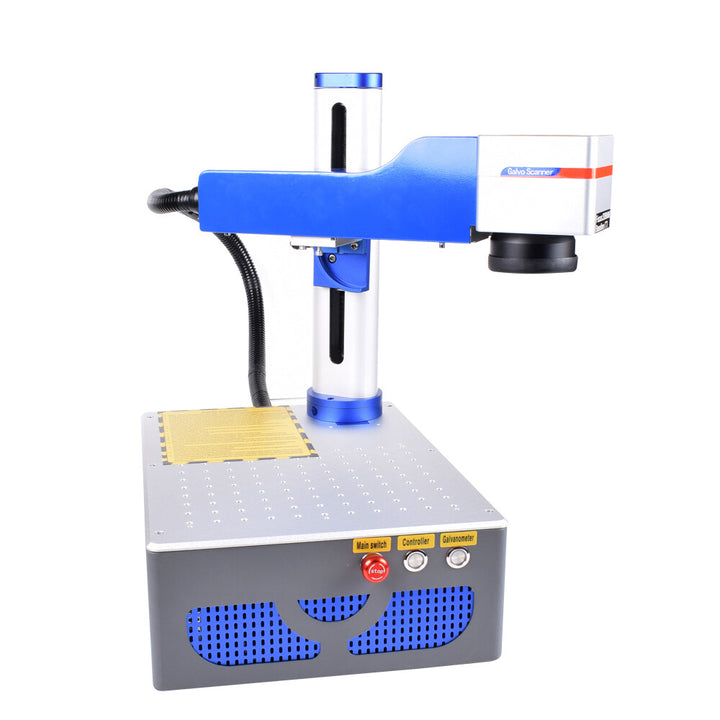

Foldable Raycus QS 30W Fiber Laser Marking Machine Ezcad 2 BJJCZ & Rotary Axis
The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

Application Of 30W Q-Switched Pulse Fiber Laser RFL-P30QS

Rust Removal
Oil Cleaning
Mold Surface Treatment
Paint Stripping
Welding Surface Pre-treatment
Portrait Stone Surface Treatment


Technical Parameters
Item Value
Application Laser Marking
Laser Power 30W

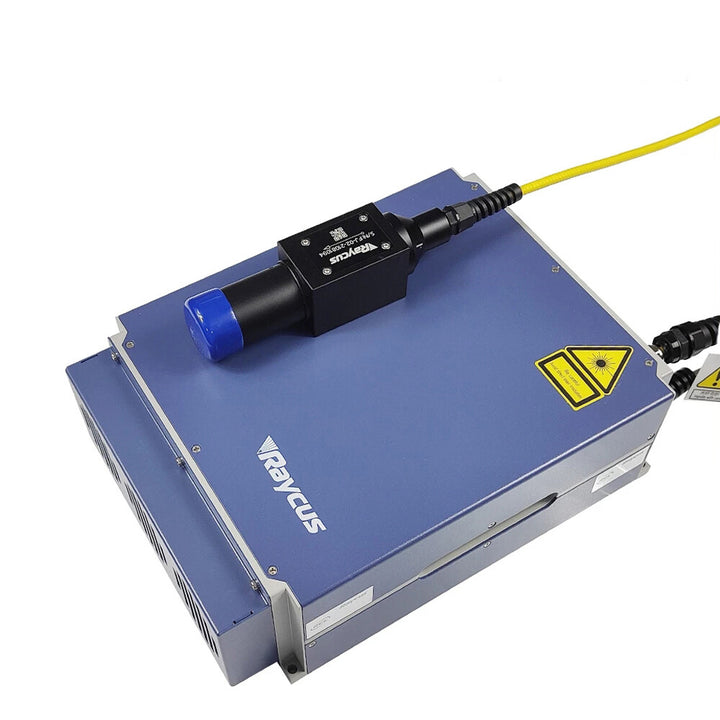

Brand Of Fiber Laser Module Raycus QS laser source
Lift Span Of Fiber Laser Module 100,000 hours
Light Beam Quality M2<1.5
Marking Line Speed ≤7000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm/Depends on the material
Marking Depth ≤1.2mm/Adjustable depends on the materials
Repeating Precision ±0.003mm
Focus Spot Diameter <0.01mm
Output Power Of Laser 10%~100% continuously to be adjusted
Laser Wavelength 1064nm
Power Supply AC220V/50Hz
Temperature /Humidity 15~35/10%~95%
Power Consumption ≤400W
Operating System Win XP/Win7/Win8/Win10
Marking Format Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc.
Laser Type Fiber Laser
Condition New
Cooling System Inbuilt air cooling
Communication Standard USB2.0
Control Software Ezcad (Easy To Use)
Place of Origin China
Certification CE, ISO
Laser Source Brand Maxphotonics

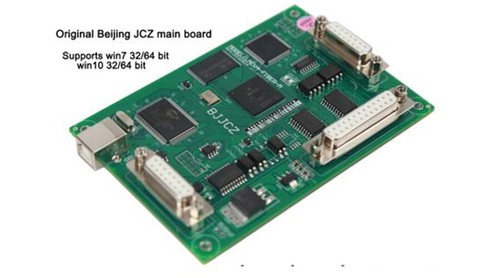

Control System Brand BJJCZ (Original version)
Gross Weight (KG) 30KG
Net Weight (KG) 25KG
Package Wooden box
Key Selling Points Easy to operate
Rotary Axis Optional
After Warranty Service Video technical support, Online support, Spare parts
Marking Area 200mm*200mm
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Warranty of core components 2 years
Core Components Motor, bearing, gear, pump, laser source, lens, galvanometer, control board
Optional (Not For Free) Rotary device,moving table,other customized automation
This above parameters are laboratory test results,subject to actual operating conditions.
