Description
Chapter 1: Equipment introduction
1、The product description
The miniature laser welding machine is composed of YAG pulse laser, laser power
supply, imported optical system, built-in integrated water cooling machine, CCD
observation system, etc., table top equipment, small size, light weight, strong
function;
Adopts the laser power supply and welding system independently developed by the
company, and is equipped with the dual observation mode of HD microscope and CCD camera.
It is the first to embed the manual voice function, and the information such as startup
and process status can be broadcast by human voice in real time. Is the company's first
embedded artificial intelligence product, the company's other series of products will
also introduce artificial voice function
Equipment advantages:
1. Built-in self-developed laser host, patented technology; Stable and reliable
2. Integrated design, ergonomic design; Beautiful appearance, generous; Small
volume, light weight
3. 7 inch TFT true color touch screen, parameter setting and CCD monitor integrated
4. Support 6 languages (international version)- customizable language
5. Electric speed expansion adjustment
6. Imported optical components, the use of the UK imported ceramic condenser cavity,
condenser cavity life (8-10 years), xenon lamp life can reach more than 8 million times;
7. Equipped with 100X100X150 manual lifting platform
8. Built-in air cooling system, continuous working ability for several hours,
stable working performance of the machine
9. Independently developed laser controller and CCD visual monitoring system
10. Specialized UI and software interface, strong R & D team
11. Artificial speech system; Real-time alarm and prompt;
12. Support irregular software upgrade, support mobile APP connection in the later
stage, access to cloud and remote monitoring
Application fields:
This series of products for jewelry, hardware, electronic industry design. Mainly
used in jewelry, hardware, electronic components, 3C communication, crafts and other
industries. They can repair and weld all kinds of metals and alloys, spot weld lines,
splicing, embedded troops and other welding; Such as stainless steel, copper, gold,
silver, K gold and so on
Necessary welding tools for jewelry processing shops, specialty shops, factories
or school scientific research laboratories

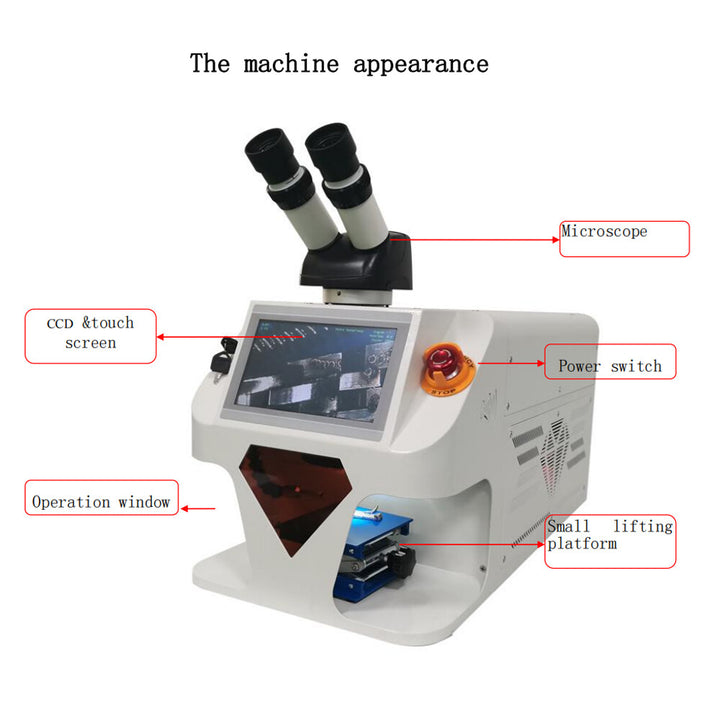

1.1. Product structure

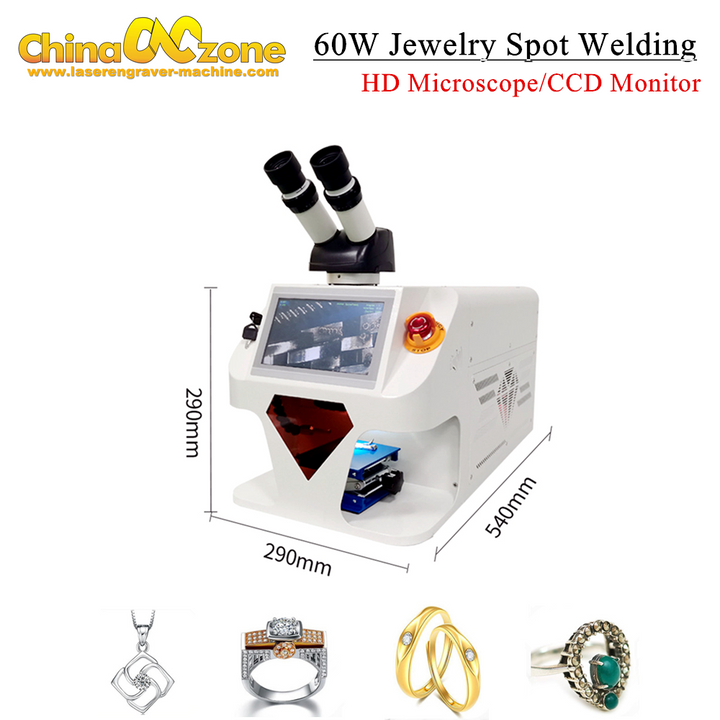

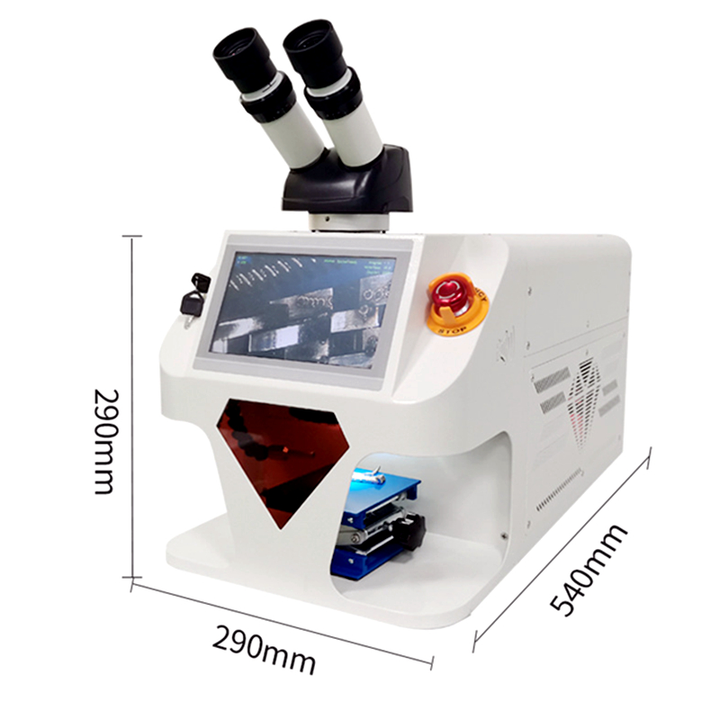

Main box Size: L 54cmx W 29cm x H 29cm.
Weight: 32 kg
1.2. Technical indicators:
- Working environment requirements: temperature range: -20℃ ~ 40℃; Humidity
- 45-75%.
- Input power requirements: single-phase AC220V/3KVA, 50Hz; Power supply network
- fluctuation is less than 10%.
- Equipment cooling system requirements: water cooling, installation location to
- maintain a ventilated environment
- Maximum output pulse frequency: 0-15HZ (other frequency ranges can be customized)
- Maximum output pulse width: 0-10ms
- Maximum output pulse current: 150A
- Output power limit: 60W/100W/150W/200W

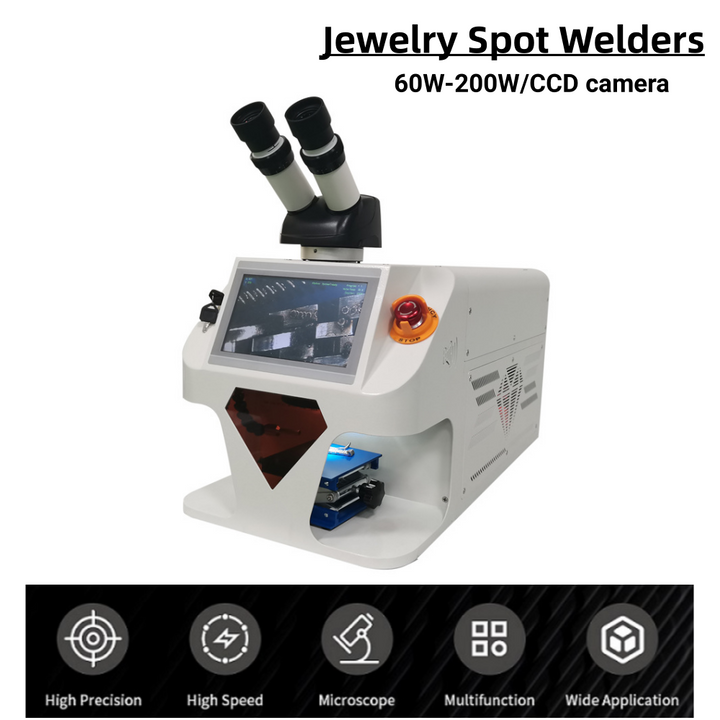

200W Jewelry Spot Welders CCD Micro Precision Laser Soldering Machine
$4,899.00
