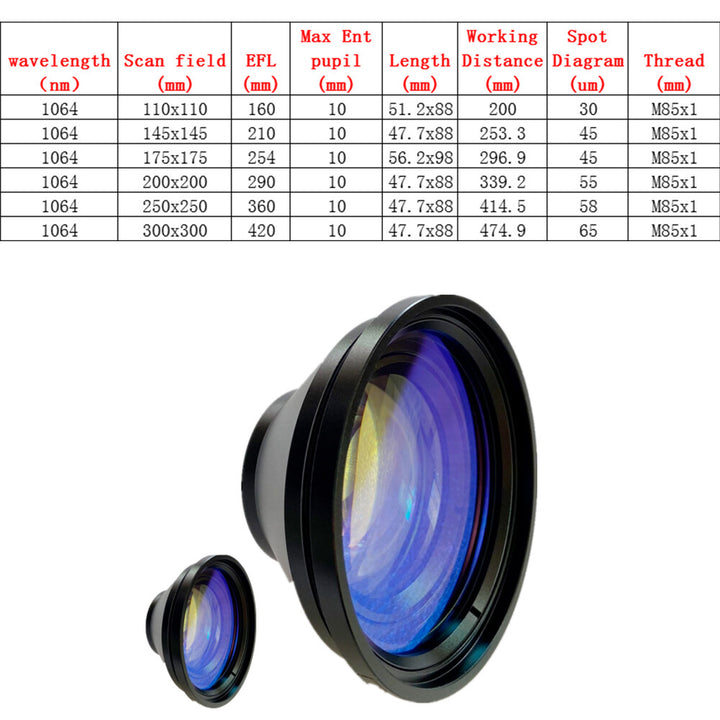

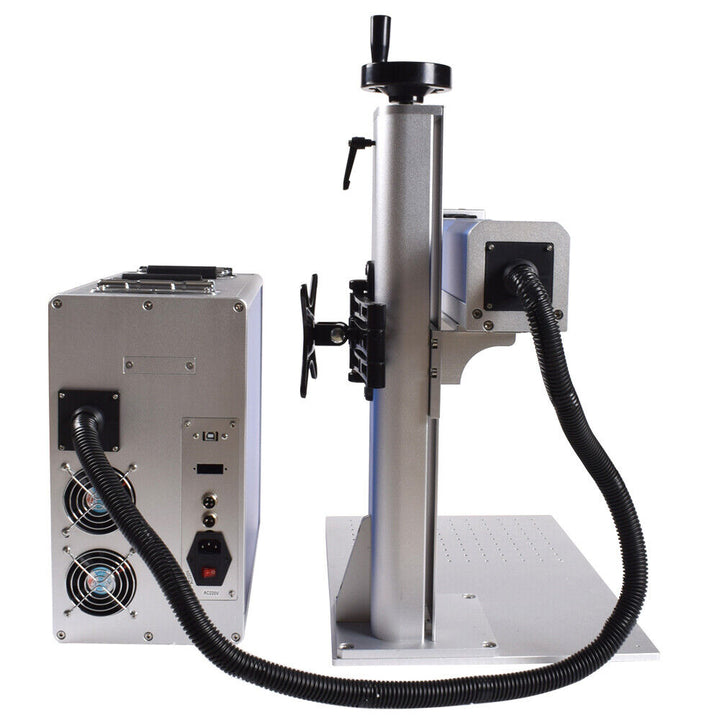

100W JPT M7 300*300mm Fiber Laser Marking Cutting Machine Quartz Lens 1-4000kHz

$4,459.00
Add to Wishlist

maestromasterpaypalshopify payvisa
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Fiber Laser Marking Machine
Description
100W JPT M7 300*300mm Fiber Laser Marking Cutting Machine Quartz Lens 1-4000kHz
PS:Welcome contact us for more details of this fiber machine!

JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.


Application Advantages

Sheet metal cutting, Welding

Scribing, Drilling

Laser derusting

Surface treatment

Metal surface processing, Peeling coating

Marking on fly


Technical Parameters
Item Value
Application Laser Marking
Laser Power YDFLP-100-M7-M-R
Brand Of Fiber Laser Module Maxphotonics(Chinese famous brand laser source)
Optional: IPG /JPT/Raycus laser source
Lift Span Of Fiber Laser Module 100,000 hours
Light Beam Quality M2<1.5
Marking Line Speed ≤8000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm/Depends on the material
Marking Depth ≤1.2mm/Adjustable depends on the materials
Repeating Precision ±0.003mm
Focus Spot Diameter <0.01mm
Output Power Of Laser 10%~100% continuously to be adjusted
Laser Wavelength Si 1064nm
Power Supply AC220V/50Hz
Temperature /Humidity 15~35/10%~95%
Power Consumption ≤400W
Operating System Win XP/Win7/Win8/Win10
Marking Format Graphics,AI,Text, PLT, DXF, BMP, Dst, Dwg, LAS, DXP,Bar code, QR code etc.
Laser Type Fiber Laser
Condition New
Cooling System Inbuilt air cooling
Communication Standard USB2.0
Control Software Ezcad (Easy To Use)
Place of Origin China
Certification CE, ISO
Laser Source Brand Maxphotonics
Control System Brand BJJCZ (Original version)
Gross Weight (KG) 55KG
Net Weight (KG) 45KG
Package Carton box
Key Selling Points Easy to operate
Rotary Axis Optional
After Warranty Service Video technical support, Online support, Spare parts
Marking Area 300mm*300mm
Machinery Test Report Provided
Video Outgoing-Inspection Provided
Warranty of core components 2 years
Core Components Motor, bearing, gear, pump, laser source, lens, galvanometer, control board
Optional (Not For Free) Rotary device,moving table,other customized automation
This above parameters are laboratory test results,subject to actual operating conditions.
